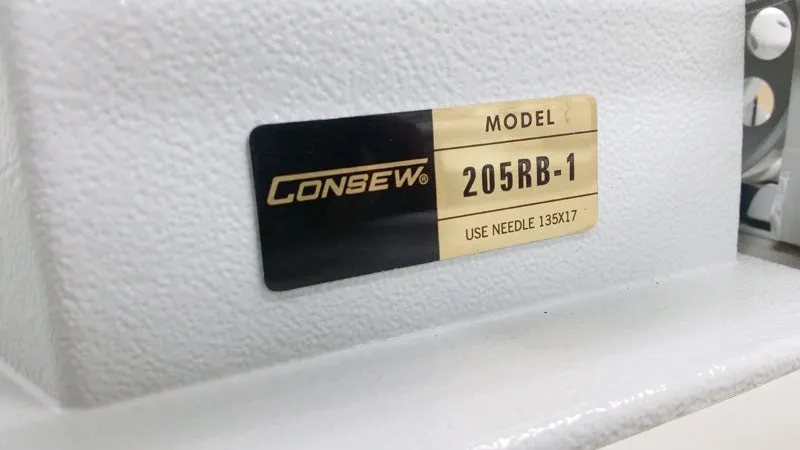

Consew 205RB-1
Reverse Feed, Large Horizontal Axis Rotary Hook and Bobbin, Semi-Automatic Lubrication with Oil Pump, Single Needle, Drop Feed, Alternation Pressure Feet Lockstick Machine
Applications
- For sewing medium to medium-heavy weight materials such as cloth, synthetics, vinyl, canvas, leather and various coated and laminated materials
- Suitable for stitching operations on such products as leather coats, jackets, gloves, belts, wallets, handbags, briefcases and other travelware accessories, canvas products, auto and boat covers and tops, upholstery
Features

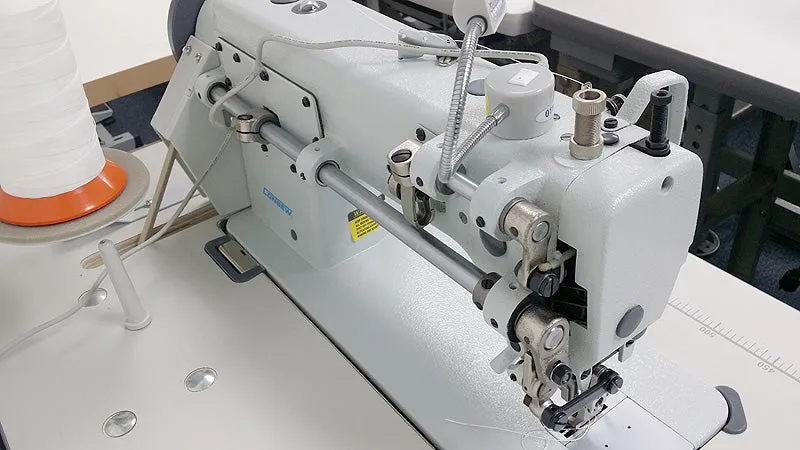

- Independently adjustable upper and lower feeding mechanism
- Horizontal axis, gear driven rotary hook
- Large bobbin
- Bobbin can be changed without removing object being sewn

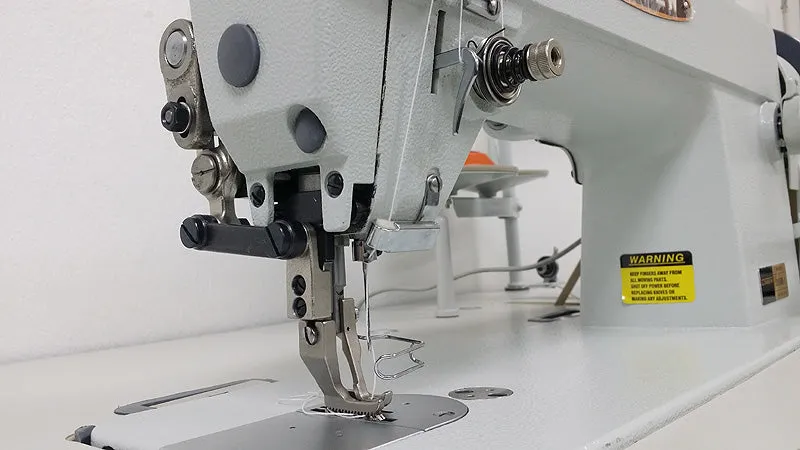

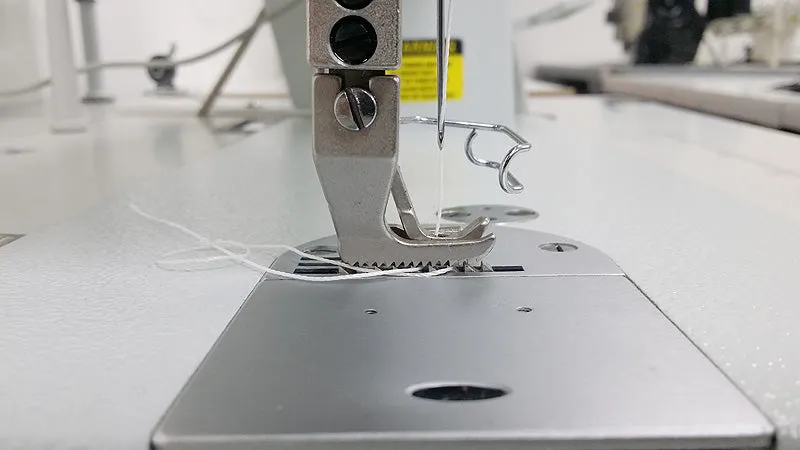

- Positive walking feet
- Top and bottom feed mechanism insures even feeding of material
- Reverse stitching
- Maximum stitch length 3.2 s.p.i. (8mm)
TECHNICAL SPECS:
| Standard or Full Function | Standard Functions |
| Needle | Metal 135 x 17 |
| Workspace | Standard Workspace |
| Hook Size | 24312/24310 |
| Feeding Mechanism | Walking Foot |
| Work Space | 10 5/16" (262mm) |
| Clearence Under Presser Foot | Hand 1/4" (6.5mm) Foot 5/8" (16mm) |
| Stitch Type | 301 |
| Stitch Length | 3.2 s.p.i. (8mm) |
| Work Surface | 7" x 18 23/32" (178mm x 475mm) |
| Number of Needles | 1 (Single) |
| Needle Bar Stroke | 1 29/64" (37mm) |
| Bobbin | Pre-Wound 24311 |
| Speed, Max (S.P.M.) | 2000 |
